PVE52 ELEVATOR

PVE52 ELEVATOR

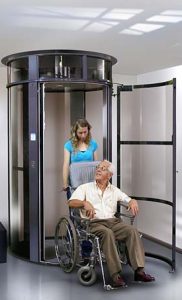

The PVE52 Elevatoris the perfect choice for those who are in need of a wheelchair-accessible home elevator. As you look more into it, you will be no doubt find that the PVE52 offers everything you need in a residential elevator. It has a 525-pound (238kg)lift capacity, making it heavy-duty, yet easy and affordable to install.

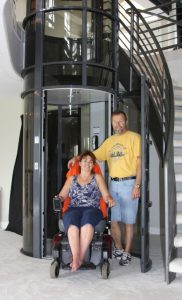

This is the largest of the three vacuum elevators, capable of carrying three people or two people if one is in a wheelchair. Even our largest lift takes up less space in your home than other traditional elevators. Like all other vacuum elevators, the PVE52 does not need a separate space for machinery or additional room above and below the lift for a pit. Since the unit has a self-supporting structure, you will not have to add a frame to your home before installing it. This means you can fit this lift anywhere in your home!
The PVE52 Elevator can be set up to have between two to five stops, which means it can be used in homes up to five stories or a total of 50 feet. It has an external cylinder diameter of 52 11/16 inches (1,316mm). Inside the unit measures a roomy 43 1/2 inches (1118mm) in diameter. This provides enough space for a person in a wheelchair with an attendant or for up to three adults to stand in comfort. The cabin height is 6′ 7″ (79 inches/ 2007mm), which is tall enough for provide headroom for most people. Rolling a wheelchair through the 32-inch (813mm) wide entrance opening is easy to do! With same side or opposite side door offerings, the largest of the residential vacuum elevators can be configured to accommodate almost any installation.
Don’t forget that this vacuum elevator model won’t be costly in your electric bills. As an environmentally-friendly home elevator, the only electrical required to power it is 220V, 35 Amp, single phase service. This wheelchair-accessible residential elevator maintains all of the safety and technology features that the other PVE models have as well. Should a power outage occur, the vacuum lift safely descends to the lowest level and the mechanical door lock enables the passenger to exit, preventing passengers from getting stuck. The cabin is equipped with an LED light as well as a cabin fan that circulates the ambient air throughout the elevator car.
There are many options for wheelchair-accessible elevators or lifts, but only the PVE52 Elevator gives you the space you need, the safety features you require, and a design that compliments your home’s decor. When you or a loved one needs help getting around in your home, installing a residential elevator is a good choice. Never has accessibility been so affordable, so attractive, or so simple!

PVE52 Elevator Standard Features

  • No pit, hoist way, or machine room required
  • Self supporting structure
  • 50 ft (15m) Total Rise Max
  • 20 ft/min travelling speed
  • Two to Five Stops
  • External cylinder diameter: 52 11/16 inches (1,316mm)
  • Internal cabin diameter: 43 1/2 inches (1118mm)
  • Internal cabin height: 6’7” (79 inches/ 2007mm)
  • Entrance way opening: 32 inches (813mm)
  • Weight of unit: 2025 lbs for 2 stop w/ 9’ ceilings
  • Through Floor or Balcony Mount Landings
  • Power Supply: 35 AMP 220VAC
  • In-line and 180° door openings
  • Aluminum and polycarbonate cylinder structure
  • Automatic interior LED lighting and fan
  • Mechanical emergency safety brake system
  • One year limited manufacturer warranty
  • ASME A17.7 Certified
Find our technical data below
52 Installation Requirements
52TYP2STOP
52TYP3STOP
52TYP4STOP
TECHNICAL SPECS UB_52
